Cell phone charging locker 100% Safe

Product Description

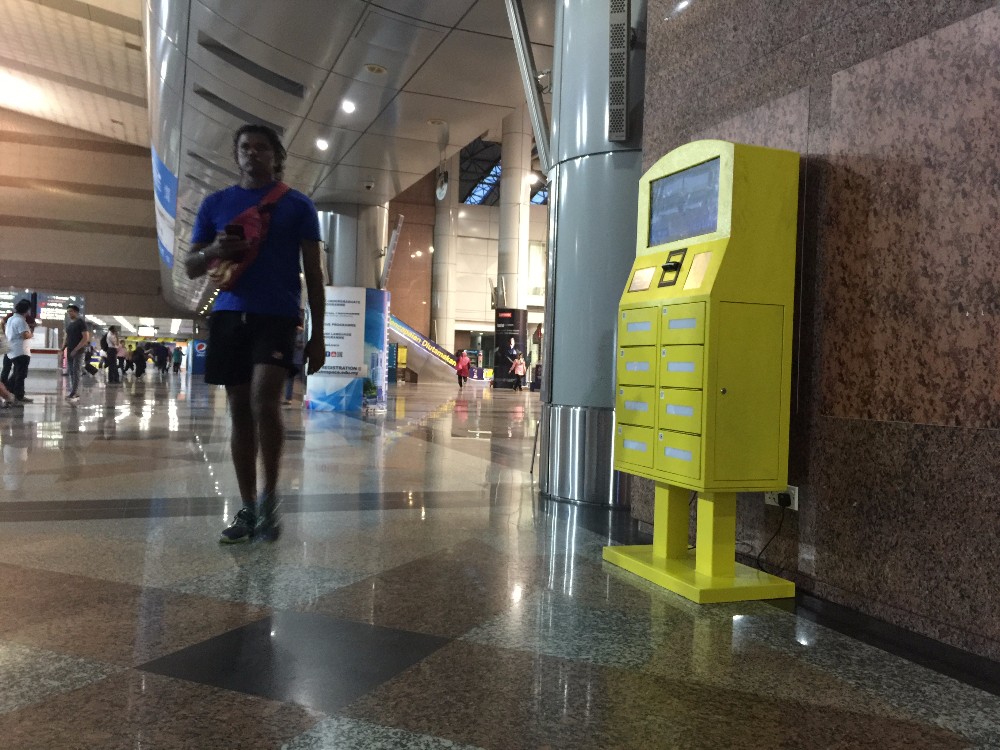

Product Description Product Application In our day and age,the Smart phone and tablets have revolutioned the way we live.Our Charging Station is a perfect way to compliment of these.It is the newest upgrade to to traditional methods of charging devices.The Charging Locker carries multiple input cables for a variety of devices.It's the convenient and safe way for your guests to charge mobile devices,cameras,and other electronics in a secured Locker,cabinet.
Main Features 1) With the intelligent charging lockers,they will automatically detect a phone,once plugged in and the door is closed,it will then begin charging the device helping to save energy. 2)These units can also be activated using cash or coins depending on what type of locker a client prefers to offer the customer. Certifications Detailed Images Machine Parts Name: E-lock Original: China
 Project name Design parameters

Model YSA-3 generation micro switch electronic control lock

Dimensions 93*67MM

Electromagnet / macro switch DC12V 1.5A/2A

Power input status DC regardless of positive and negative

Switch input status On when door is closed; off when door is open

Door-opening Thrust ≥1.5KG

Weight 0.3KG

Shell Material Stainless steel

Lock Hook Material Precision super hard metal powder casting

Spring and Others High temperature heat treatment hardening

Operating Temperature 40/-120℃ to ensure normal use

Operating Humidity Natural humidity

Product Life 500,000 times

Main Features Name: Wires
Original: China
Conductor: soft/flexible multi-strand oxygen-free copper conductor,with a conductive rate of 99.99%, with superconducting properties, which reduces the resistance to directly affect the transmission process of consumption and heating and has more stable transmission characteristics"
RVB line has a high-quality automotive-exclusive PVC insulation layer, with high strength-resistance, high elongation, high hardness and good insulation, is flame retardant, waterproof, wear resistant, anti-aging, nipping-resistant, highly impact-resistant, and has a long service life.
wMachine Parts ireName: PCB
 Output voltage DC12-24V 9A

Voltage AC170V-260V 50HZ/60HZ

Operating Voltage DC12V 5A

Operating Temperature -20/65℃

Humidity 3 35/85% RH

Door opening time difference 3s

Chip STM32F103VET6 32-bit microcontroller

Processor Speed 72MHZ

Power Supply Voltage Range 2V-3.6V

Operating Temperature Range !-40 ° C to -85 ° C

Anti-interference Very strong

Main Features Name:  Switch Mode Power Supply
Original: China
 Power Supply Model HF100W-S-12

Power Specifications 12V 9.0A

Input Voltage 170-264VAV

Power Supply Weight 0.58KG

Power Supply Dimensions 199*98*39

Output Overload Protection 105~130%, shut off, re-power on to recover

Dielectric Strength I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

Input start inrush current 40A/230V)(cold state)

AC input frequency 47~63Hz

Packing & Delivery
1960(H) *700 (W) * 400 (D)

Packaging Details
The normal package is wooden box(Size: H*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Contact us if you need more details on mobile phone lockers. We are ready to answer your questions on packaging, logistics, certification or any other aspects about cellphone charge locker、electronic safe locker. If these products fail to match your need, please contact us and we would like to provide relevant information.
